Hydraulic breaker chisel for Atlas Copco

Short Description:

ATLAS COPCO

1. Material: Special Selected Raw Materials.

2. Self Developed Segmented Heating Treatment Technology.

3. Strict Production Control: CNC machine to make it more accuracy.

4. More than 10 years production experience.

5. Good after sales services & Warranty time.

6. Better Effency, Strong Stability, High wear resistance.

Email: mac@dngchisel.com

Inquiry now Contact us

Product Detail

Product Tags

Model

Model #	Design	Diameters (mm)	Length (mm)	Weight (kg)	Interchangeable Model

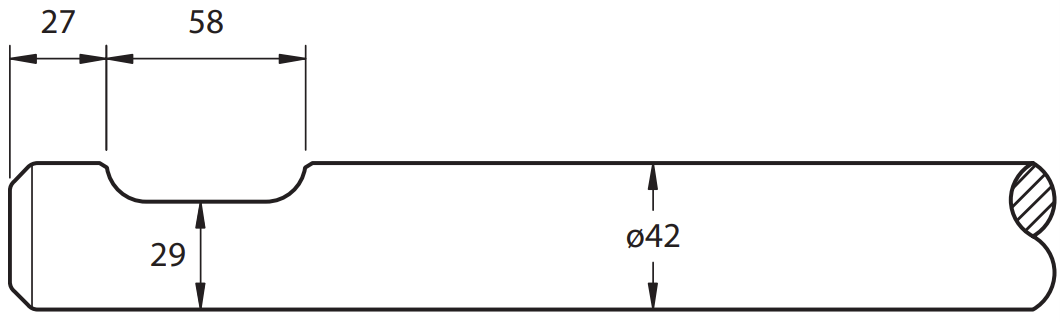

Atlas Copco PB110		42	470	4	Berco BB42, Chicago Pneumatic CP100, Krupp AT20
Atlas Copco PB160		52	600	8	Berco BB52, Chicago Pneumatic CP150, Krupp AT70
Atlas Copco PB210		62	700	14	Berco BB62, Chicago Pneumatic CP200, Krupp AT120
Atlas Copco PB310		70	750	21	Berco BB70, Chicago Pneumatic CP300, Krupp AT170
Atlas Copco PB420		80	900	29	Berco BB80, Chicago Pneumatic CP400/550, Krupp AT220, HM220/230

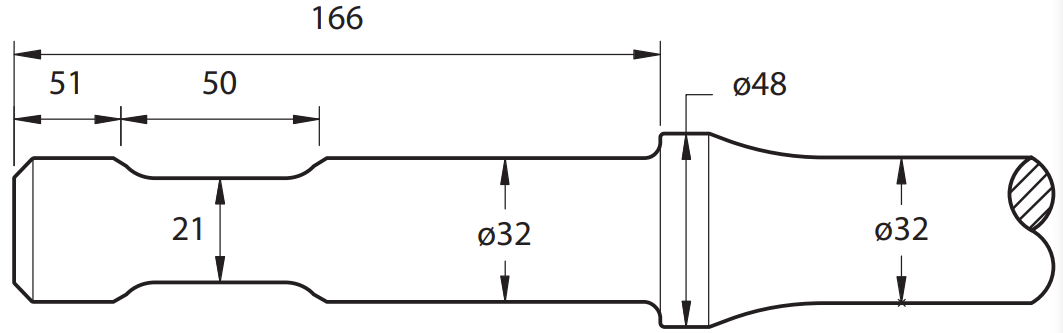

Atlas Copco SB50		32	430	2	Atlas Copco SBC60, Tex30H
Atlas Copco SB100		45	550	5	Atlas Copco SBC110, Tex75H / 100H
Atlas Copco SB150		50	550	7	Atlas Copco SBC255, TEX110H
Atlas Copco SB200		65	600	13	Atlas Copco SBC410, TEX180H
Atlas Copco SB300		80	800	27	Atlas Copco SBC610, SBC650
Atlas Copco SB300 Scaler		80	800	28
Atlas Copco Tex 250H		80	800	27
Atlas Copco Tex 250H Scaler		80	800	28
Atlas Copco SB450		95	840	43	Atlas Copco SBC800/850, Tex 400H

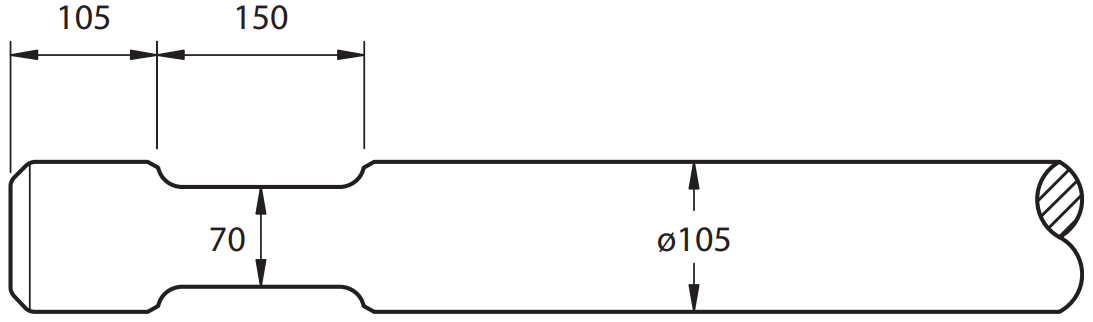

Atlas Copco HBC1100/1700		105	900	60	Atlas Copco Tex 600H, 700H, 900H
Atlas Copco HBC2500		125	1000	95	Atlas Copco Tex 1400H
Atlas Copco HBC4000		135	1100	119	Atlas Copco Tex 1800H/2000H
Atlas Copco HBC6000		170	1500	245
Atlas Copco MB500		90	900	36	Krupp HM350
Atlas Copco MB700/MB800		100	1000	55	Krupp HM580, Chicago Pneumatic CP750
Atlas Copco MB1000		109	1050	61	Krupp HM680
Atlas Copco MB1200		120	1150	94	Krupp HM780
Atlas Copco MB1700		140	1200	137	Krupp HM1000
Atlas Copco HB2200		150	1300	178	Krupp HM1500, Chicago Pneumatic CP2250
Atlas Copco HB3000		165	1500	223	Krupp HM2300, Chicago Pneumatic CP3050
Atlas Copco HB4200		180	1500	300	Krupp HM2600, Chicago Pneumatic CP4250
Atlas Copco HB5800		200	1700	405	Krupp HM3000
Atlas Copco HB7000		210	1800	458	Krupp HM4000

Main Specification

Item	Hydraulic breaker chisel for Atlas Copco
Brand Name	DNG Chisel
Place of Origin	China
Chisels Materials	40Cr, 42CrMo, 46A , 48A
Steel Type	Hot Rolled Steel
Chisel Type	Blunt,Wedge, Moil, Flat, Conical, etc.
Minimum Order Quantity	10 pieces
Packaging Detail	Pallet or wooden box
Delivery time	4-15 working days
Supply Ability	300,000 pieces per year
Near Port	Qingdao Port
