Chisel Tools for Excavator With Stable Quality

Short Description:

FURUKAWA

1. Material: Special Selected Raw Materials.

2. Self Developed Segmented Heating Treatment Technology.

3. Strict Production Control: CNC machine to make it more accuracy.

4. More than 10 years production experience.

5. Good after sales services & Warranty time.

6. Better Effency, Strong Stability, High wear resistance.


Product Detail

Product Tags

Model

Model # Design Diameters
(mm)
Length
(mm)
Weight
(kg)
Furukawa F1/HB1G  FK29
36 400 2
Furukawa F2/HB2G  FK30  45 450 3
Furukawa F3  FK31
52 525 5
Furukawa F4  FK32   60 560 12
Furukawa F5  FK33   68 600 15
Furukawa F6  FK34   75 730 21
Furukawa F9   FK35  90 850 34
Furukawa F12   FK36  105 1100 72
Furukawa F19   FK37  120 1200 97
Furukawa F22   FK38  135 1250 125
Furukawa F27  FK39   140 1300 136
Furukawa F35   FK40  150 1400 192
Furukawa F45  FK41   165 1500 230
Furukawa F70  FK42   180 1600 270
Furukawa HB1G/ F1  FK43   36 400 3
Furukawa HB2G/F2  FK44   45 450 5
Furukawa HB3G  FK45  60 560 12
Furukawa HB5G  FK46   75 640 19
Furukawa HB8G  FK47   90 750 30
Furukawa HB10G   FK48  105 1000 65
Furukawa HB15G    FK49  125 1100 90
Furukawa HB20G  FK50   135 1200 125

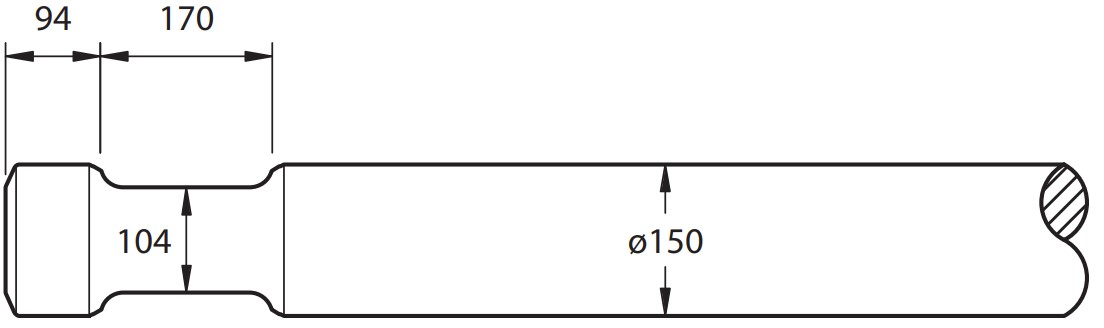

Furukawa HB30G   FK51  150 1300 165
Furukawa HB40G   FK52  160 1400 200

Main Specification

Item Chisel tools for excavator with stable quality
Brand Name DNG Chisel
Place of Origin China
Chisels Materials 40Cr, 42CrMo, 46A , 48A
Steel Type Hot Rolled Steel
Chisel Type Blunt,Wedge, Moil, Flat, Conical, etc.
Minimum Order Quantity 10 pieces
Packaging Detail Pallet or wooden box
Delivery time 4-15 working days
Supply Ability 300,000 pieces per year
Near Port Qingdao Port
arafa
zhanhu
_cuva

We have products depending on the breaker specifications, usage environment, and purpose. We develop and manufacture chisels, tools that can be attached to the tip of electric hammers and hydraulic excavators to process and crush rocks and concrete.

Our products are exported to countries such as Asia and the Middle East, and are used at construction sites, quarries, mines, etc. all over the world.
